B TOOL S

Category: Special serie

Specifications

Application:

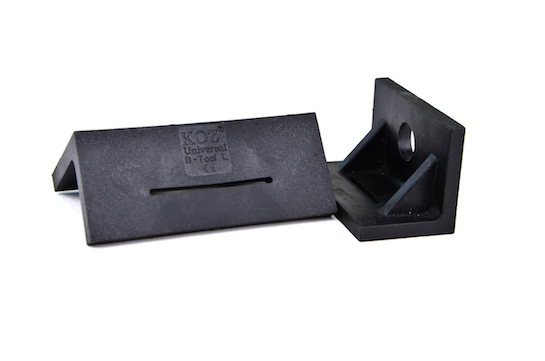

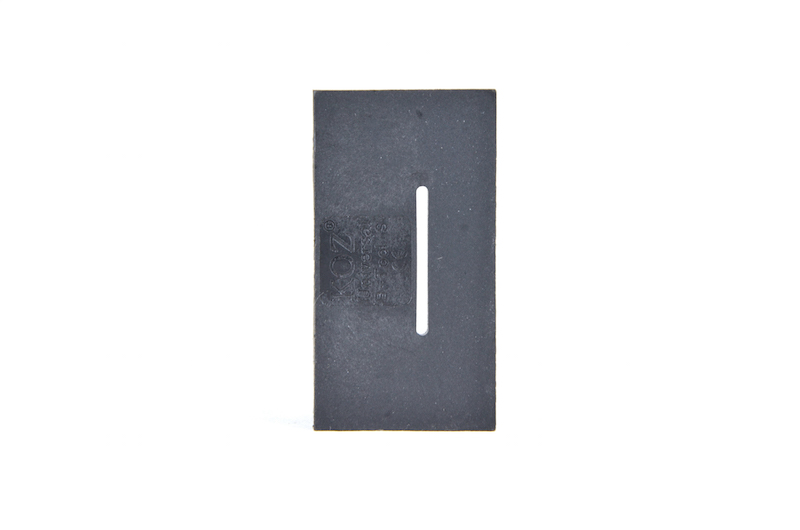

The KOZ B-tool S is the tool to assemble KOZ cable clamps and blocks on a straight or
round pole, without damaging them by e.g. drilling or sawing. The KOZ B-tool S can also
be used to install other products on straight or round poles.

Range:

B-tool S is suitable for:
KOZ ST 11-17, 18-26, 26-38, 36-52, 50-75
KOZ STC 21-38, 36-52, 46-75
KOZ TRI eco 24-35, 33-46, 47-66
KOZ UNI 3x 13-32, 4x 13-32, 3x 30-49, 4x 30-49, 3x 45-67
KOZ TRI UNI 3x3 27-37, 4x3 27-37
KOZ SQ 28, 25-35

Material:

Black polyamide (PA66), fibreglass-reinforced, virgin material.

Fire resistance:

UL94 V-0 and classification standard EN 45545-2: 2020 – Railway applications.
Requirement set R22,R23 / Hazard level HL1,HL2.

Temperature:

Permanent application from -80˚C to +120˚C. Short-term heating of up to +220˚C

Advantages:

Resistant to oils, greases, frost, heat, UV, ozone, salt water, salts, acids and aggressive chemicals.
Non-oxidizing, non-corrosive, non-magnetic and non-conductive.
Halogen-free and no sharp edges.
Lifetime warranty, easy assembly and available worldwide.

Extra possibilities:

B-tools can be assembled by using a steel tie (“Bandit band”). You can turn the B-tool
inside or outside, depending on the outer diameter of the cable.
