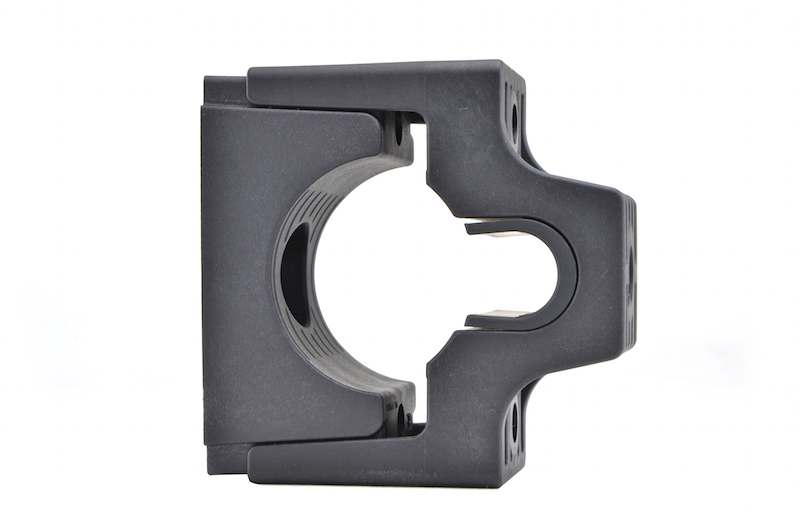

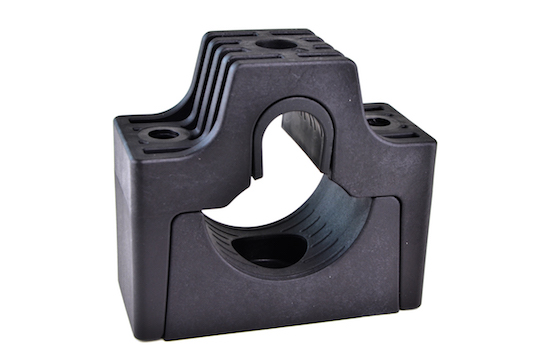

DUO 44-61
DUO 44-61
Category:
Special serie
Specifications
Application:
Suitable for mounting 2 single- and multiple-conductor low- medium- and high voltage
cables with a different outer diameter.
cables with a different outer diameter.
Range:
For cables with a nominal outer diameter of 44 up to 61 mm. and an additional cable above
with an outer diameter of 18, 22 or 29 mm.
with an outer diameter of 18, 22 or 29 mm.
Material:
Black polyamide (PA66), fibreglass-reinforced, virgin material.
Fire resistance:
UL94 V-0 and classification standard EN 45545-2: 2020 – Railway applications.
Requirement set R22,R23 / Hazard level HL1,HL2.
Requirement set R22,R23 / Hazard level HL1,HL2.
Temperature:
Permanent application from -80˚C to +120˚C. Short-term heating of up to +220˚C.
Advantages:
Resistant to oils, greases, frost, heat, UV, ozone, salt water, salts, acids and aggressive chemicals.
Non-oxidizing, non-corrosive, non-magnetic and non-conductive.
Halogen-free and no sharp edges.
Lifetime warranty, easy assembly and available worldwide.
Non-oxidizing, non-corrosive, non-magnetic and non-conductive.
Halogen-free and no sharp edges.
Lifetime warranty, easy assembly and available worldwide.
Extra possibilities:
By using our unique insert it is made possible to install, besides a cable of 44 up to 61 mm, another cable above with an outer diameter of 18, 22 or 29 mm.
Product Dimensions
The product listed in this datasheet is produced in conformity with the latest EU Directive 2011/65 / EU (RoHS),
and complies with all legal obligations in accordance with REACH.
Dimensions in millimeters
| Type | L | B | H1 | H2 | h | A | D1 | D2 | I | d | C |
|---|---|---|---|---|---|---|---|---|---|---|---|
| KOZ DUO 44-61 | 110 | 50 | 50 | 27 | 48 | 19 | 44-61 | 18-29 | 80 | M10 | M10 |
Advantages
Resistant to oils, greases, frost, heat, UV, ozone, salt water, salts, acids and aggressive chemicals.
Non-oxidizing, non-corrosive, non-magnetic and non-conductive
Halogen-free and no sharp edges
Lifetime warranty, easy assembly and available worldwide
