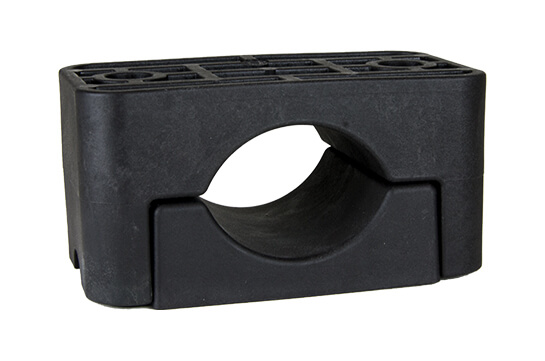

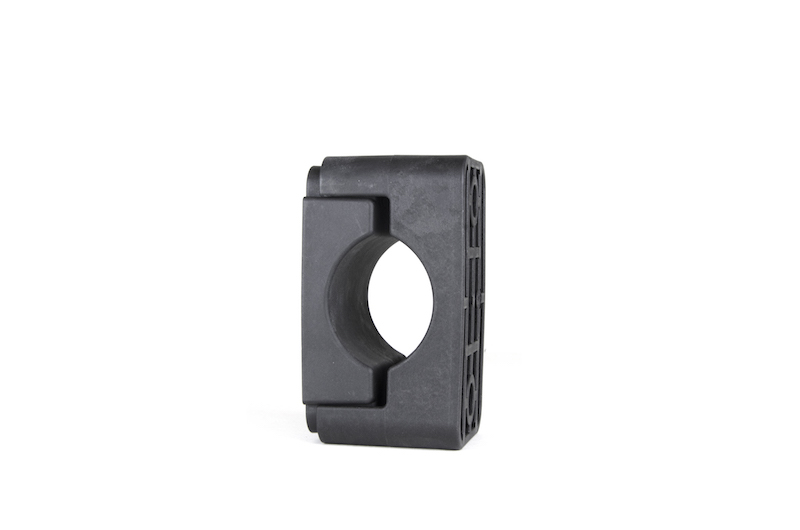

ST 36-52
ST 36-52
Category:
Single Serie
Specifications
Application:
Suitable for mounting single- and multiple-conductor low- medium- and
high voltage cables.
high voltage cables.
Range:
For cables with a nominal outer diameter of 36 up to 52 mm.
Material:
Black polyamide (PA66), fibreglass-reinforced, virgin material.
Fire resistance:
UL94 V-0 and classification standard EN 45545-2: 2020 – Railway applications.
Requirement set R22,R23 / Hazard level HL1,HL2.
Requirement set R22,R23 / Hazard level HL1,HL2.
Standards:
Certified in accordance with the international standard NEN-EN-IEC 61914:2021.
Temperature:
Permanent application from -80˚C to +120˚C. Short-term heating of up to +220˚C.
Advantages:
Resistant to oils, greases, frost, heat, UV, ozone, salt water, salts, acids and aggressive chemicals.
Non-oxidizing, non-corrosive, non-magnetic and non-conductive.
Halogen-free and no sharp edges.
Lifetime warranty, easy assembly and available worldwide.
Non-oxidizing, non-corrosive, non-magnetic and non-conductive.
Halogen-free and no sharp edges.
Lifetime warranty, easy assembly and available worldwide.
Product Dimensions
The product listed in this datasheet is produced in conformity with the latest EU Directive 2011/65 / EU (RoHS),
and complies with all legal obligations in accordance with REACH.
Dimensions in millimeters
| Type | DØ | L | B | I | dØ | H | h | A | Strength (N) |
|---|---|---|---|---|---|---|---|---|---|
| KOZ ST 36-52 | 36-52 | 108 | 60 | 75 | 12,5 | 58-74 | 27 | 11 | 28.000 |
Advantages
Resistant to oils, greases, frost, heat, UV, ozone, salt water, salts, acids and aggressive chemicals.
Non-oxidizing, non-corrosive, non-magnetic and non-conductive.
Halogen-free and no sharp edges.
Lifetime warranty, easy assembly and available worldwide.
Tests have been performed by
