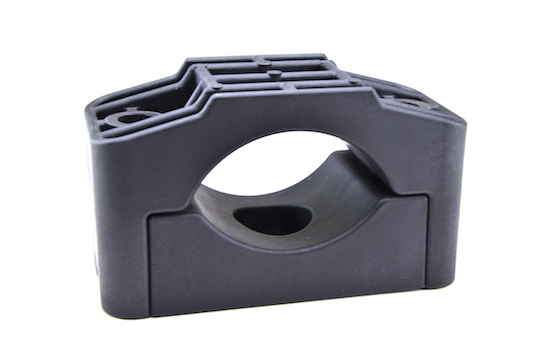

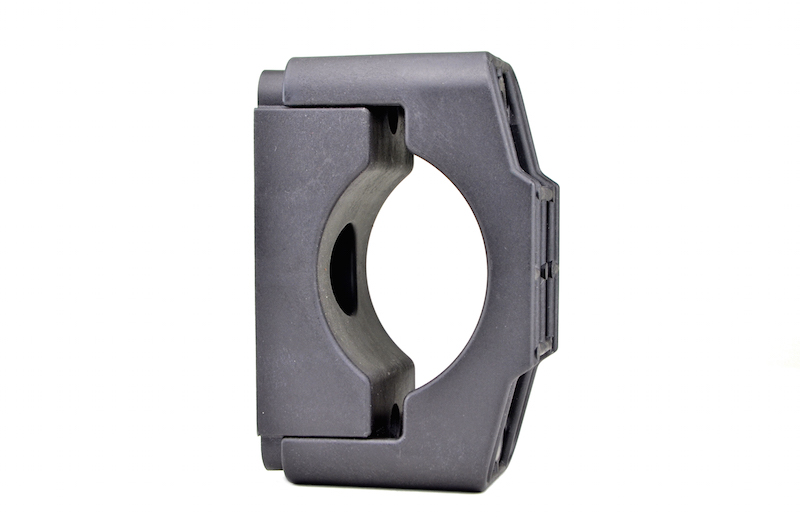

STC 46-75
STC 46-75
Category:
Single Serie
Specifications
Application:
Suitable for mounting single- and multiple-conductor low- medium- and
high voltage cables.
high voltage cables.
Range:
For cables with a nominal outer diameter of 46 up to 75 mm.
Material:
Black polyamide (PA66), fibreglass-reinforced, virgin material.
Fire resistance:
UL94 V-0 and classification standard EN 45545-2: 2020 – Railway applications. Requirement set R22,R23 / Hazard level HL1,HL2.
Standards:
Certified in accordance with the international standard NEN-EN-IEC 61914:2021.
Temperature:
Permanent application from -80˚C to +120˚C. Short-term heating of up to +220˚C.
Advantages:
Resistant to oils, greases, frost, heat, UV, ozone, salt water, salts, acids and aggressive chemicals.
Non-oxidizing, non-corrosive, non-magnetic and non-conductive.
Halogen-free and no sharp edges.
Lifetime warranty, easy assembly and available worldwide.
Non-oxidizing, non-corrosive, non-magnetic and non-conductive.
Halogen-free and no sharp edges.
Lifetime warranty, easy assembly and available worldwide.
Extra possibilities::
The central fastening hole in the bottom part of this STC clamp enables more installation possibilities for e.g. masts, poles, concrete or fitting rails.
Product Dimensions
The product listed in this datasheet is produced in conformity with the latest EU Directive 2011/65 / EU (RoHS),
and complies with all legal obligations in accordance with REACH.
Dimensions in millimeters
| Type | DØ | L | B | I | dØ | H1 | H2 | h | A | C | Strength (N) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| KOZ STC 46-75 | 46-75 | 128 | 60 | 95 | 12,5 | 65-95 | 14 | 35 | 20 | 12,5 | 40.800 |
Advantages
Resistant to oils, greases, frost, heat, UV, ozone, salt water, salts, acids and aggressive chemicals.
Non-oxidizing, non-corrosive, non-magnetic and non-conductive.
Halogen-free and no sharp edges.
Lifetime warranty, easy assembly and available worldwide.
Tests have been performed by
