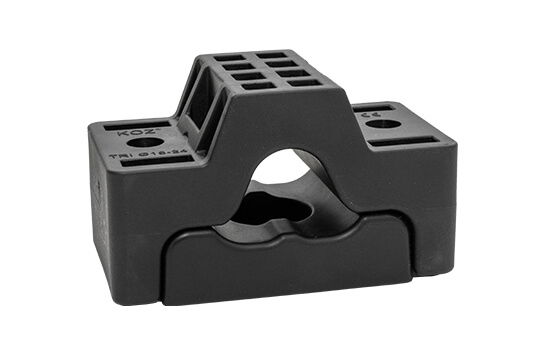

TRI 15-24

Category: Trefoil Serie

Specifications

Application:

Suitable for mounting 3 single- and multiple-conductor low- medium- and
high voltage cables.

For cables with a nominal outer diameter of 15 up to 24 mm.:

Range

Material:

Black polyamide (PA66), fibreglass-reinforced, virgin material.

Fire resistance:

UL94 V-0 and classification standard EN 45545-2: 2020 - Railway applications.
Requirement set R22, R23 / Hazard level HL1, HL2.

Standards:

Certified in accordance with the international standard NEN-EN-IEC 61914:2021.

Temperature:

Permanent application from -80˚C to +120˚C. Short-term heating of up to +220˚C.

Advantages:

Resistant to oils, greases, frost, heat, UV, ozone, salt water, salts, acids and aggressive chemicals.
Non-oxidizing, non-corrosive, non-magnetic and non-conductive.
Halogen-free and no sharp edges.
Lifetime warranty, easy assembly and available worldwide.

Extra possibilities:

The central fastening hole in the bottom part of this TRI clamp enables more installation possibilities for e.g. masts, poles, concrete or fitting rails.
The 4 holes in the upper and bottom part of this clamp can be used for installation on all kinds of ladders and other support systems without drilling holes.

Inquire Now Download Datasheet

Product Dimensions

The product listed in this datasheet is produced in conformity with the latest EU Directive 2011/65 / EU (RoHS),
and complies with all legal obligations in accordance with REACH.

Dimensions in millimeters
