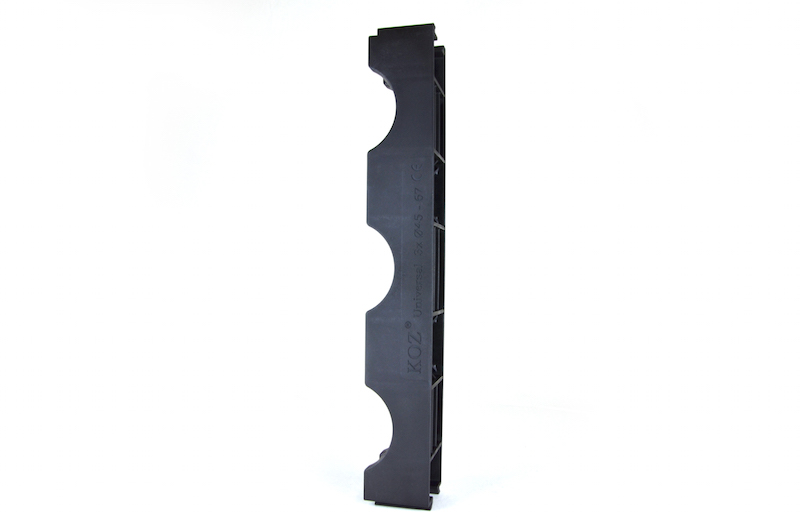

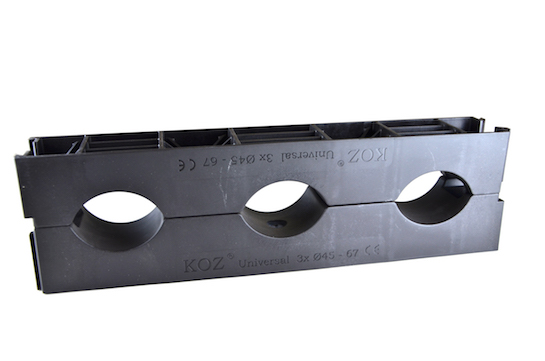

UNI 3x 45-67
UNI 3x 45-67
Category:
Universal serie
Specifications
Application:
Suitable for mounting multiple single- and multiple-conductor low- medium- and high voltage cables alongside or in layers upon each other.
Range:
For cables with a nominal outer diameter of 45 up to 67 mm.
Material:
Black polyamide (PA66), fibreglass-reinforced, virgin material.
Fire resistance:
UL94 V-0 and classification standard EN 45545-2: 2020 – Railway applications.
Requirement set R22,R23 / Hazard level HL1,HL2.
Requirement set R22,R23 / Hazard level HL1,HL2.
Standards:
Certified in accordance with the international standard NEN-EN-IEC 61914:2021.
Temperature:
Permanent application from -80˚C to +120˚C. Short-term heating of up to +220˚C.
Advantages:
Resistant to oils, greases, frost, heat, UV, ozone, salt water, salts, acids and aggressive chemicals.
Non-oxidizing, non-corrosive, non-magnetic and non-conductive.
Halogen-free and no sharp edges.
Lifetime warranty, easy assembly and available worldwide.
Non-oxidizing, non-corrosive, non-magnetic and non-conductive.
Halogen-free and no sharp edges.
Lifetime warranty, easy assembly and available worldwide.
Extra possibilities:
The UNI blocks are designed in such a way that these blocks can easily be shortened or extended due to its unique dovetail connection. This has resulted in a cable block which can be used in a number of ways to suit your needs.
Product Dimensions
The product listed in this datasheet is produced in conformity with the latest EU Directive 2011/65 / EU (RoHS),
and complies with all legal obligations in accordance with REACH.
Dimensions in millimeters
| Type | DØ | L | E | I | A1 | A2 | B1 | dØ | h | Strength (N) |
|---|---|---|---|---|---|---|---|---|---|---|
| KOZ UNI 3x 45-67 | 45-67 | 356 | 118 | 117 | 117 | 61 | 55 | 12,5 | 12,5 | 70.000 |
Advantages
Resistant to oils, greases, frost, heat, UV, ozone, salt water, salts, acids and aggressive chemicals.
Non-oxidizing, non-corrosive, non-magnetic and non-conductive
Halogen-free and no sharp edges.
Lifetime warranty, easy assembly and available worldwide.
Tests have been performed by
