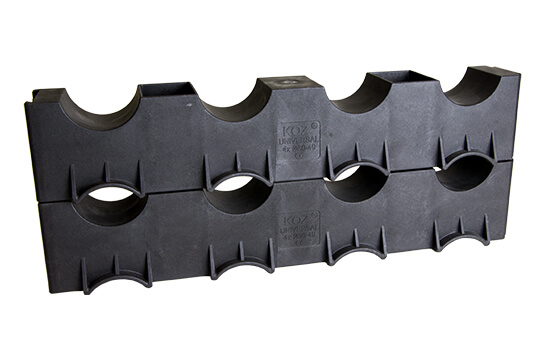

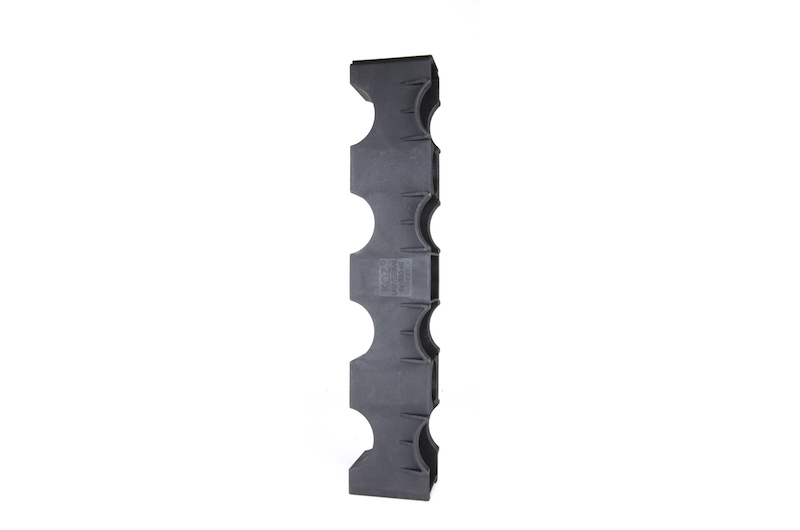

UNI 4x 30-49

Category: Universal serie

Specifications

Application:

Suitable for mounting multiple single- and multiple-conductor low- medium- and
high voltage cables alongside or in layers upon each other.

Range:

For cables with a nominal outer diameter of 30 up to 49 mm.

Material:

Black polyamide (PA66), fibreglass-reinforced, virgin material.

Fire resistance:

UL94 V-0 and classification standard EN 45545-2: 2020 – Railway applications.
Requirement set R22,R23 / Hazard level HL1,HL2.

Standards:

Certified in accordance with the international standard NEN-EN-IEC 61914:2021.

Temperature:

Permanent application from -80˚C to +120˚C. Short-term heating of up to +220˚C

Advantages:

Resistant to oils, greases, frost, heat, UV, ozone, salt water, salts, acids and aggressive chemicals.
Non-oxidizing, non-corrosive, non-magnetic and non-conductive.
Halogen-free and no sharp edges.
Lifetime warranty, easy assembly and available worldwide.

Extra possibilities:

The UNI blocks are designed in such a way that these blocks can easily be shortened or extended due to its unique dovetail connection. This has resulted in a cable block which
can be used in a number of ways to suit your needs.

Inquire Now Download Datasheet

Product Dimensions

The product listed in this datasheet is produced in conformity with the latest EU Directive 2011/65 / EU (RoHS),
and complies with all legal obligations in accordance with REACH.

Dimensions in millimeters
