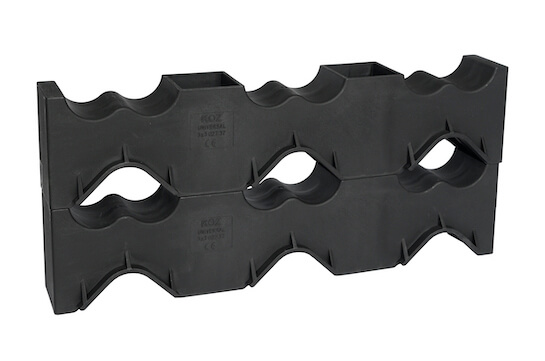

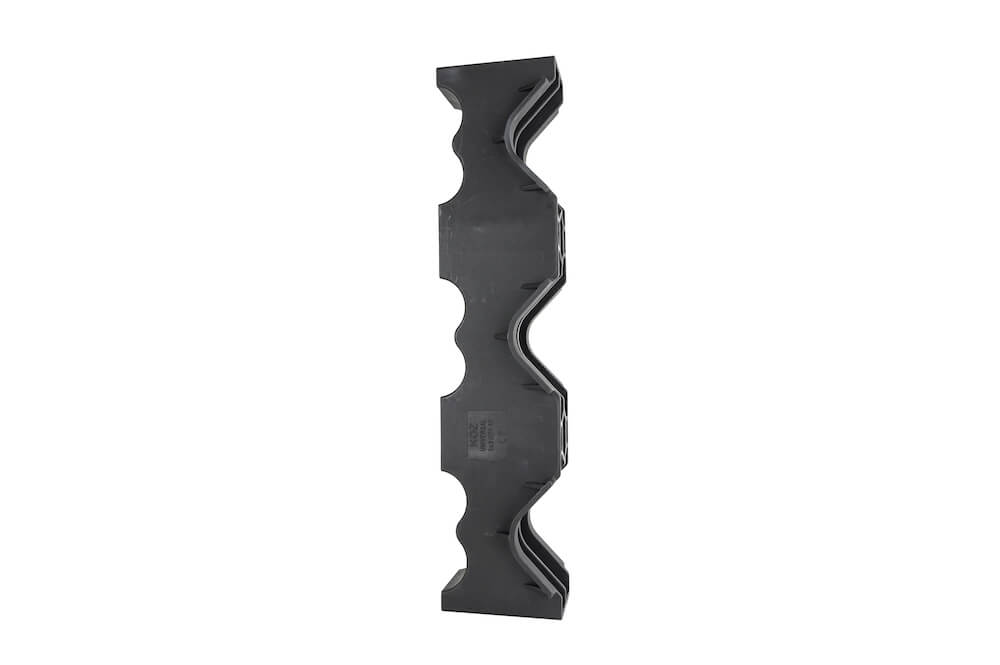

UNI TRI 3×3 27-37
UNI TRI 3×3 27-37
Category:
Universal serie
Specifications
Application:
Suitable for mounting single- and multiple-conductor low- medium and high voltage cables alongside or in layers upon each other.
Range:
For cables with a nominal outer diameter of 27 up to 37 mm.
Material:
Black polyamide (PA66), fibreglass-reinforced, virgin material.
Fire resistance:
UL94 V-0 and classification standard EN 45545-2: 2020 – Railway applications.
Requirement set R22,R23 / Hazard level HL1,HL2.
Requirement set R22,R23 / Hazard level HL1,HL2.
Standards:
Certified in accordance with the international standard NEN-EN-IEC 61914:2021.
Temperature:
Permanent application from -80˚C to +120˚C. Short-term heating of up to +220˚C
Advantages:
Resistant to oils, greases, frost, heat, UV, ozone, salt water, salts, acids and aggressive chemicals.
Non-oxidizing, non-corrosive, non-magnetic and non-conductive.
Halogen-free and no sharp edges.
Lifetime warranty, easy assembly and available worldwide.
Non-oxidizing, non-corrosive, non-magnetic and non-conductive.
Halogen-free and no sharp edges.
Lifetime warranty, easy assembly and available worldwide.
Extra possibilities:
The KOZ UNI TRI 3x 27-37 cable blocks are designed in such a way that these blocks can hold 9 cables, 3x 3 cables in Trefoil formation. This will give you extra possibilities when multiple cables have to be installed in limited spacing.
Product Dimensions
The product listed in this datasheet is produced in conformity with the latest EU Directive 2011/65 / EU (RoHS),
and complies with all legal obligations in accordance with REACH.
Dimensions in millimeters
| Type | DØ | L | I | F | A1 | A2 | B1 | B2 | dØ | h | H | Strength (N) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| KOZ UNI TRI 3x3 27-37 | 27-37 | 27-37 | 119-130 | 105-110 | 120 | 50 | 66 | 50 | 13 | 75 | 152-176 | 36.900 |
Advantages
Resistant to oils, greases, frost, heat, UV, ozone, salt water, salts, acids and aggressive chemicals.
Non-oxidizing, non-corrosive, non-magnetic and non-conductive.
Halogen-free and no sharp edges
Lifetime warranty, easy assembly and available worldwide.
Tests have been performed by
