KOZ Products Single STC series – flexible and safe fastening of one cable

The KOZ Products Single STC series offers a versatile and reliable solution for installing both single and multi-core cables in low-, medium-, and high-voltage installations, with cable diameters ranging from 21 mm to 160 mm. Thanks to its sophisticated design with additional mounting options, this series stands out for its maximum stability and installation flexibility.

KOZ Products Single STC series

The KOZ Products Single STC series offers a versatile and reliable solution for installing both single and multi-core cables.

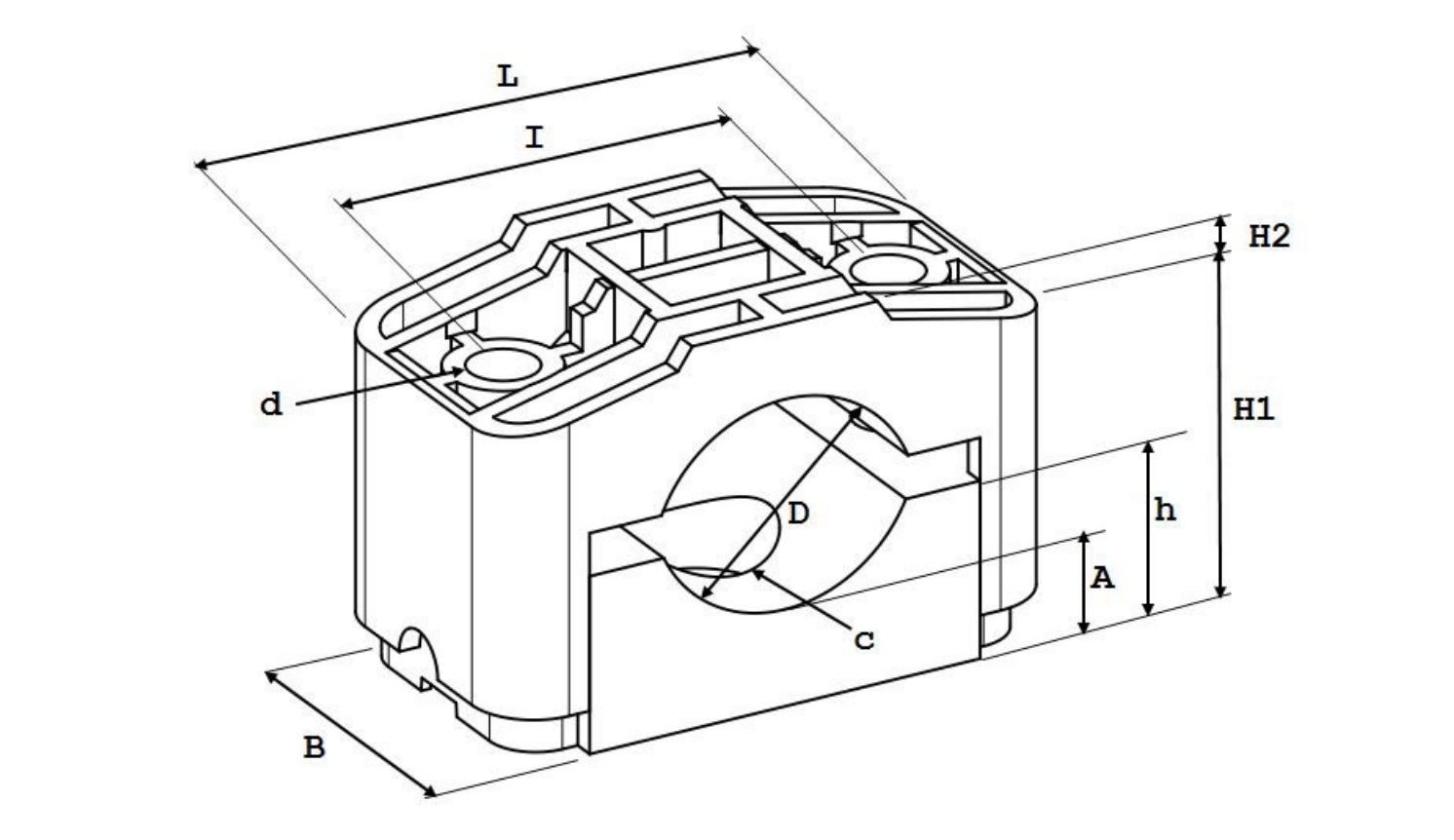

Dimensions in millimeters

Type	DØ	L	B	I	dØ	H1	H2	h	A	C	Strength (N)
STC 21-38	21-38	92	60	60	12,5	45-61	9	26	18	12,5	38.700
STC 36-52	36-52	107	60	75	12,5	57-72	12	33	18	12,5	45.300
STC 46-75	46-75	128	60	95	12,5	65-95	14	35	20	12,5	40.800
STC 72-100	72-100	172	80	127	14,5	91-119	19	51	22,5	14,5	47.300
STC 100-130	100-130	200	80	158	14,5	145-175	23	60	21	13	70.000
STC 120-160	120-160	120-160	80	190	15,5	145-185	23	71	24	14,5	48.000

Design & technical details

Two-piece design with extra attachment

Like the ST series, the STC clamps consist of a top and bottom shell, but also feature an additional central mounting hole. This makes them ideal for mounting on masts, poles, or concrete – without compromising stability.

Cable diameter and clamping force

The STC series can be used with cable diameters of 21–38 mm, 36–52 mm, 46–75 mm, 72–100 mm, 100–130 mm, and 120–160 mm. The maximum clamping force is approximately 70,000 N for the larger types.

Sustainable material and certification

The STC clamps are made of black, fiberglass-reinforced polyamide (PA66). Features include:

Corrosion resistant, flame retardant, UV resistant, resistant to oil, acids, salt water and high short-circuit currents.
Temperature range: continuously from 80 °C to +120 °C, with peaks up to +220 °C.
Safe and reliable: halogen-free, no sharp edges, self-extinguishing according to UL 94 V0, non-magnetic and non-conductive.

The STC series is certified according to NENENIEC 61914 and meets stricter quality requirements from KEMA, SGS, UL and KU Leuven, among others.

Ease of installation & versatility

The STC clamps combine a robust design with mounting flexibility. The three mounting holes—including the central one—increase mounting options for various surfaces. Integrated nut recesses in the top shell make installation quick and efficient. Technical tutorials and installation videos show the standard mounting instructions for all Single series.
