Universal UNI - KOZ Products | Cable clamps and cable blocks

KOZ Products Universal UNI Series – versatile solution for multiple cable installations

The KOZ Products Universal UNI series consists of single cable blocks that function as both a lower and upper shell. They are ideal for securing single and multi-core cables in flat formations, side by side, or in layers – suitable for low, medium, and high-voltage cables with a nominal outer diameter of 13 to 150 mm.

KOZ Products Universal UNI Series

The KOZ Products Universal UNI Series consists of single cable blocks that function as both a lower and upper shell.

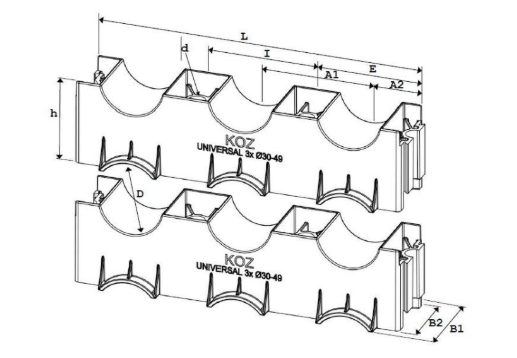

Dimensions in millimeters

Type	DØ	L	I	E	A1	A2	B1	B2	dØ	h	Strength (N)
UNI 3x 13-32	13-32	186,5	60,5	62,75	60,5	32,25	61	45	10,5	43	26.680
UNI 3x 30-49	30-49	255	85	83	85	40	66	50	13	65	41.700
UNI 3x 45-67	45-67	356	117	118	117	61	55	-	12,5	12,5	70.000
UNI 4x 13-32	13-32	246,5	121	62,75	60,5	32,25	61	45	10,5	43	30.000
UNI 4x 30-49	30-49	345	345	85	85	45	66	B2	13,5	65	30.900

Design & Technical Specifications

Material, durability and safety

Made of black, glass fibre reinforced polyamide (PA66) — strong, impact resistant, with excellent chemical and thermal resistance.
Fire safety: self-extinguishing according to UL 94 V0; halogen-free, non-conductive, non-magnetic and without sharp edges.
Resistant to oils, greases, frost, UV, ozone, salt water, salts, acids and aggressive chemicals.

Temperature range & certification

Suitable for temperatures from 80 °C to +120 °C; short-term peak up to +220 °C.
Certified according to NENENIEC 61914, including testing by KEMA, SGS, UL, KU Leuven, Schneider and in accordance with RoHS/REACH guidelines.

Certifications & safety standards

The Universal UNI series complies with the international NENENIEC 61914 standard, with additional quality marks from KEMA, SGS, UL, KU Leuven, and others, and is RoHS-compliant. This underscores its reliability and safety for professional electrical applications.
