KOZ Products Universal UNI TRI series – compact trefoil solutions for multiple cables
The KOZ Products Universal UNI TRI series is designed to securely fasten 9 or 12 cables in a 3×3 or 4×3 Trefoil configuration per layer. Ideal for space-constrained situations where triple cable anchoring is required.
KOZ Products Universal UNI TRI series
The KOZ Products Universal UNI TRI series is designed to securely fasten 9 or 12 cables in a 3x3 or 4x3 Trefoil configuration per layer.

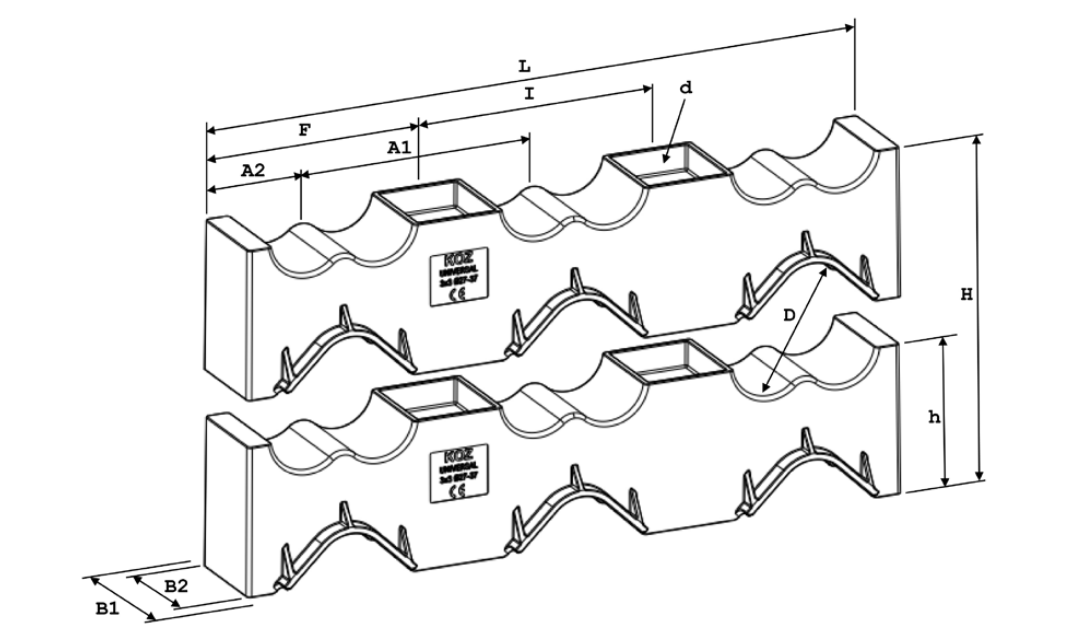

Dimensions in millimeters
| Type | DØ | L | I | F | A1 | A2 | B1 | B2 | dØ | h | H | Strength (N) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| UNI TRI 3×3 27-37 | 27-37 | 27-37 | 119-130 | 105-110 | 120 | 50 | 66 | 50 | 13 | 75 | 152-176 | 36.900 |
| UNI TRI 4×3 27-37 | 27-37 | 460 | 119-130 | 105-110 | 120 | 50 | 66 | 50 | 13 | 75 | 152-176 | 48.200 |
Design & Technical Specifications
Material, durability & safety
- Made of black, glass fibre reinforced polyamide (PA66) — strong and durable
- Halogen-free, self-extinguishing (UL 94 V0), non-magnetic, non-conductive, without sharp edges and with a lifetime warranty
- Resistant to oils, greases, frost, heat, UV, ozone, salt water, acids and aggressive chemicals
Temperature range & certification
- Temperature range: from –80 °C to +120 °C, short-term peak up to +220 °C
- Certified according to NENENIEC 61914:2016, and tested by KEMA, SGS, KU Leuven and UL. Also RoHS and REACH compliant
Design & installation ease
The UNI TRI blocks consist of a single integrated housing that simultaneously forms the upper and lower shell. This allows for easy installation of cables that are laid side by side and in layers.
Practical benefits & areas of application
Provides compact and efficient cable management in limited spaces with 9 or 12 cable trefoil configurations
Ideal for applications in industrial, expansive and marine environments where safety, reliability and space efficiency are critical.
Why choose KOZ Products Universal UNI TRI?
Maximum space efficiency
by 3x3 or 4x3 trefoil setup
Easy installation
sustainable design and certification
Equipped with strong
technical standards and guarantees
Space-saving and modular
in professional cable design
Powerful Confirmation
High clamping force up to 48,2kN power
Certifications
KOZ Cable clamps and blocks are certified to the international NEN-EN-IEC 61914:2021 norm.
